1280x800 2D Barcode Scanner OEM 2D Barcode Scanner Module

Ask Lasest Price
Brand Name :	HST
Certification :	Rohs
Price :	1usd
Payment Terms :	L/C, T/T
Supply Ability :	10,000 pcs/day
Delivery Time :	7-10 days

Add to Cart

Product Details
Company Profile

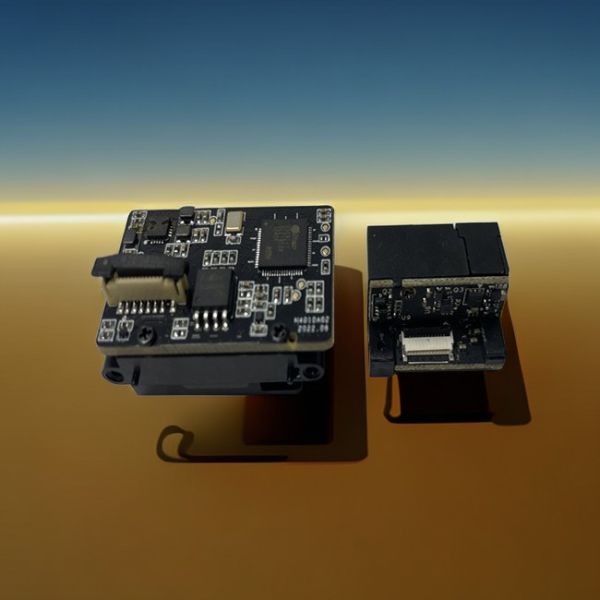

1280x800 2D Barcode Scanner OEM 2D Barcode Scanner Module

1280x800 2D Barcode Scan Engine OEM 2D Barcode Scanner Module

Description:

The 1280x800 2D Barcode Scan Engine OEM 2D Barcode Scanner Module is a high-resolution scanning module specifically designed for original equipment manufacturers (OEMs) seeking to integrate barcode scanning capabilities into their products. This module offers excellent performance and versatility for scanning 2D barcodes.

With a resolution of 1280x800 pixels, the scan engine captures barcode images with exceptional clarity and detail, ensuring accurate decoding. It supports a wide range of 2D barcode formats, including QR codes, Data Matrix codes, and PDF417 codes, as well as traditional 1D barcodes.

The OEM barcode scanner module is compact and easily integrated into various devices such as point-of-sale (POS) systems, handheld scanners, and industrial equipment. It provides a standardized interface and communication protocol for seamless integration with the host device.

The module's high-speed scanning capabilities enable rapid barcode capture and decoding, enhancing efficiency and productivity in applications such as retail, logistics, and inventory management. Its OEM design allows manufacturers to incorporate reliable barcode scanning functionality into their products, delivering a seamless user experience.

Spcecification:

Parameter	Performance
Image sensor	Mono CMOS
Pixel	1280(H)× 800(V)
Shutter	Global shutter
Frame rate	Up to 60fps
Illumination	White light
Aiming	Red laser
Field of view	Horizontal 39.5°,Vertical 26.1°
Decode type	2D	Aztec Code,Han Xin Code,Data Matrix,Maxi Code,Micro QR Code,QR Code, etc.
	1D	Standard one-dimensional code
	Postal Code	Australian Post,British Post,China Post,Japanese Post,KIX Post,Korea Post,Planet Code,Postnet,Royal Mail Code (RM4SCC), etc.
DOF*	EAN-13(13mil)	45~590mm
	Code 39(20mil)	45~930mm
	Code 39(10mil)	65~470mm
	Code 39(5.5mil)	70~340mm
	Code 39(3.9mil)	60~220mm
	Data Matrix(15mil)	50~420mm
	Data Matrix(10mil)	50~300mm
Resolution*	1D:2.5mil,Data Matrix:5mil,PDF417:3mil
Contrast*	≥20%
Angle **	pitch	±60°
	tilt	±180°
	skew	±60°
